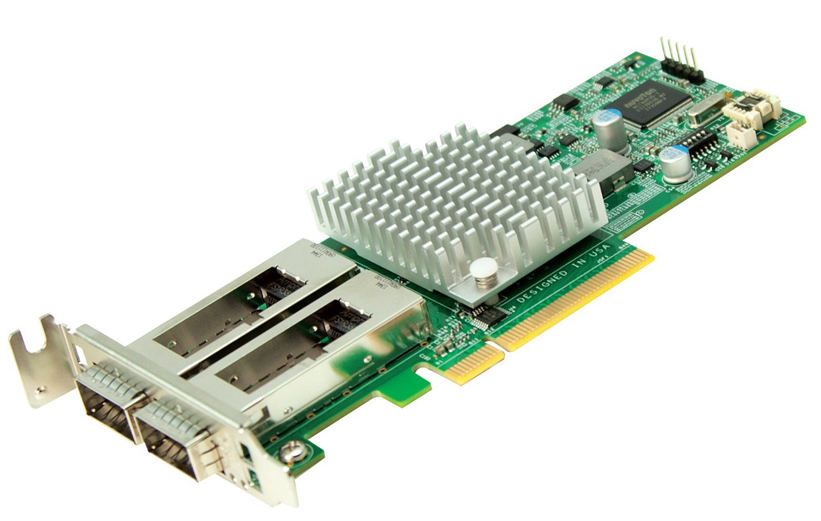

Двухпортовый сетевой адаптер AOC-S40G-i2Q
190 440 Тг.
- Под заказ, 30 дней
- Код: AOC-S40G-i2Q
+7 (727) 379-66-81
- Условия оплаты и доставки
- График работы
- Адрес и контакты
Device Type | Ethernet Controller Card | ||||||||||||||||||
Dimensions (WxDxH) | Card PCB: 5.9 x 2.73in (L x H) - Height of end brackets: standard: 4.725, low-profile: 3.13 in | ||||||||||||||||||
Form Factor | Low-Profile Standard Short-length Form Factor | ||||||||||||||||||
Interface (Bus) Type | PCI Express 3.0 (8GT/s) | ||||||||||||||||||
Networking | |||||||||||||||||||
Data Transfer Rate | 40Gb/s per port | ||||||||||||||||||
Port Quantity | 2 QSFP+ Ports | ||||||||||||||||||
Power | |||||||||||||||||||
Comsumtion Operational | Typical power consumption: 4.9W - Maxium power consumption: 7W | ||||||||||||||||||
Software / System Requirements | |||||||||||||||||||
OS Supports | Windows® Server 2012 R2, 2012, 2008 R2 X86-64 | ||||||||||||||||||
Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64 | |||||||||||||||||||
Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64 | |||||||||||||||||||
FreeBSD 9 and 10 IA-32, X86-64, and IA-64 | |||||||||||||||||||
UEFI 2.1 and 2.3 X86-64 and I-64 | |||||||||||||||||||
VMware ESXi 5.1 and ESXi 5.5 X86-64 | |||||||||||||||||||
Miscellaneous | |||||||||||||||||||
Cables Required | Supports Both Direct Attach Copper and Fiber Cables | ||||||||||||||||||
QSFP+ direct attach twinax copper cables up to 7m | |||||||||||||||||||
Fiber-optic cables (with required optional transceivers) | |||||||||||||||||||
Compliant Standards | RoHS compliant 6/6 | ||||||||||||||||||
Designed For | Supermicro® motherboards with minimum PCI-E x8 slot | ||||||||||||||||||
Supermicro® server systems with low-profile or full-height PCI-E x8 expansion slot |
Характеристики
Основные | |
---|---|
Производитель | Broadcom |
Страна производитель | США |
Тип | Сетевая карта |
Количество внешних разъемов | 2 (шт.) |
Интерфейс подключения | PCI-E |
Скорость передачи данных | 40000 Мбит/сек |
Состояние | Новое |
Информация для заказа
- Цена: 190 440 Тг.
